| Brand Name : | Recoda |
| Model Number : | C807-AHD |
| Certification : | fcc cc rhos |
| Price : | negotiations |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 |
| Delivery Time : | 5-8 workdays |
IR Dome Waterproof Vehicle Cameras Metal AHD 1.3MP / 2MP
C807-AHD IR Dome Camera Waterproof Vehicle Surveillance Cameras Metal AHD 1.3MP / 2MP
IR Dome Camera waterproof Vehicle Cameras Metal AHD 1.3MP / 2MP
Product Description

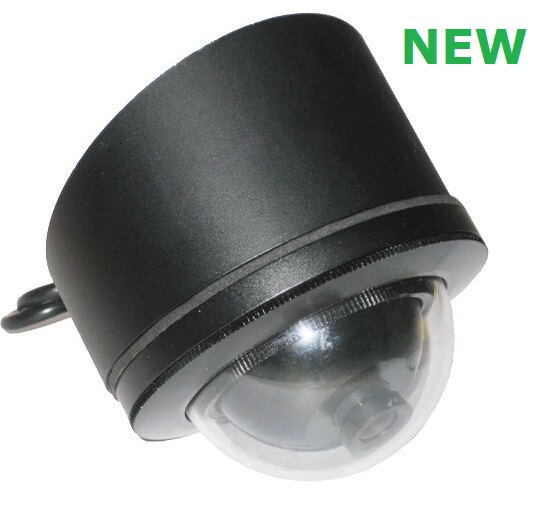

The C807-AHD is a high-performance camera specially designed for mobile video surveillance in buses, trains, taxi and emergency vehicles. The camera has protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps and temperature fluctuations. The vehicle mounted camera is designed for quick and reliable installation. The 1.3MP or 2MP C807-AHD vehicle mounted camera can be choosed. The vehicle dome camera has low power consumption.
Features of C807-AHD Vehicle Mounted Camera
Specification
| Model | C807-AHD ( 2MP ) | C807-AHD ( 1.3MP ) |
| Type | Metal infrared dome camera | |
| Image Sensor | 1/2.8 Sony IMX222 | 1/3” CMOS Sensor AR0130 |
| TV System | PAL/NTSC(OPTIOAL) | |
| Picture Elements | 1920H x 1080 V | 1280(H)*960(V) |
| Sensitivity | 0 Lux (LED on) | |
| Scanning System | progressive scan RGB CMOS | |
| Synchronization | Internal | |
| Infrared Spectrum | 850nm or 940 nm | 850nm |
| S/N Ratio | More than 50 dB, (AGC Off) | More Than 44 dB, (AGC Off) |
| Auto Gain Control (AGC) | Auto | |
| White Balance | Auto | |
| Electronic Shutter | Auto | |
| Back Light Compensation | Auto | |
| Infrared LED | 10LEDs | |
| Infrared LED Range | 5 Meters | |
| Video Output | AHD 1 Vp-p, 75Ω, | |
| Audio Output | N/A | |
| Mirror | N/A | |
| Gamma Ratio | 0.45 | |
| Auto-iris Lens Control | N/A | |
| Lens | f3.6mm Megapixel | |
| Exterior Focus Adjustment | N/A | |
| View Angle | 90° (D) | |
| Pan Adjusting | +/-180 Degree | |
| Tilt Adjusting | 0-62 Degree | |
| Power Supply | 12V DC (9V~18V) | |
| Power Consumption | 150 mA | |
| Dimensions (ø X H) | 77 x 60.3 mm | |
| Net Weight | 200 g | |
| Weatherproof/Water Proof | Weatherproof (IP66 for top side) | |
| Operating Temperature | -25°C to +60°C | |
Product Pictures
Our Service
1. Any inquires will be replied within 24 hours.
2. All products including body worn camera, mobile DVR, car camera will be strictly checked before shipping
3. All products will be carefully packed before shipping.
4. High quality, resonable and competitive price.
5. We have our own factory to produce products that can meet your different needs.
Any more questions please contract us.
About us
Shenzhen Recoda Technologies Limited is one of the leading vehicle surveillance system developer & manufacturer in China nowadays. We specialize in manufacturing R&D of body worn camera recorder for police car and Law Enforcement agencies & Mobile DVRs for bus, taxi, police car for over 10 years. Currently, all items are exported to America, Europe, Australia and other Asian countries. Recoda have over 40,000 systems installations all over the world.
|
|
